Brother KH840 knitting machine

Brother KH840 knitting machine was manufactured and released to the market in 1978. It is a metal flatbed knitting machine with 200 needles, positioned 4.5 mm apart. This is a standard gauge machine. It has the ability to accept patterns in the form of punch cards. The punch-card reader (which accepts 24-hole (in one row) punchcards) translates the pattern to the needle selectors and this is how various tuck-, slip-, weave-, lace- and fair-isle patterning is achieved. The punch card has a 24-stitch repeat pattern.

Might come under the name of “KnitKing”. Some model of punch card Brother knitting machines is often present in my store.

The row counter is of a modern design and can actually be purchased new if a replacement is needed (for example, in my store).

The patterning capabilities are activated when the knob on the carriage is moved into the KC position and the carriage latches onto a timing belt. A timing belt also helps (if oiled well) to move the carriage more easily across the bed. The handle on the carriage folds when not in use.

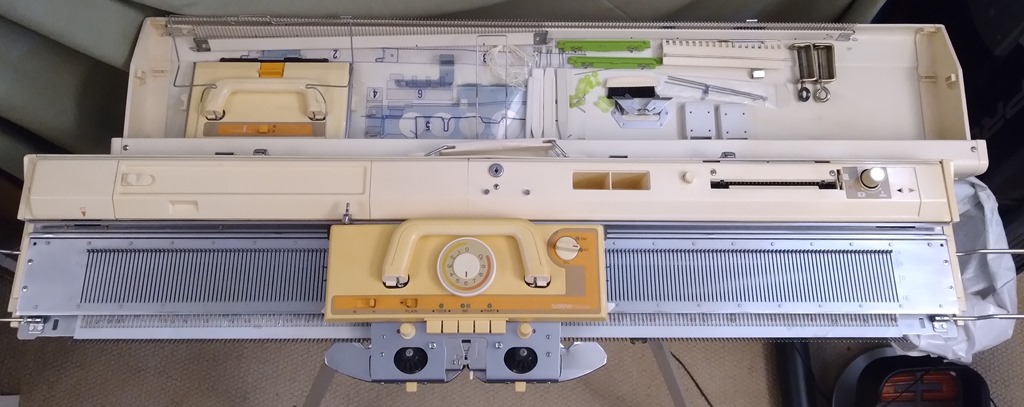

It comes with a standard set of minor and major assesories. The major assesories that are expected to be included are extension rails,  cast-on combs, and lace carriage. Together with the mast, they fit into the lid of the case when not in use.

20230904_210654 (2)

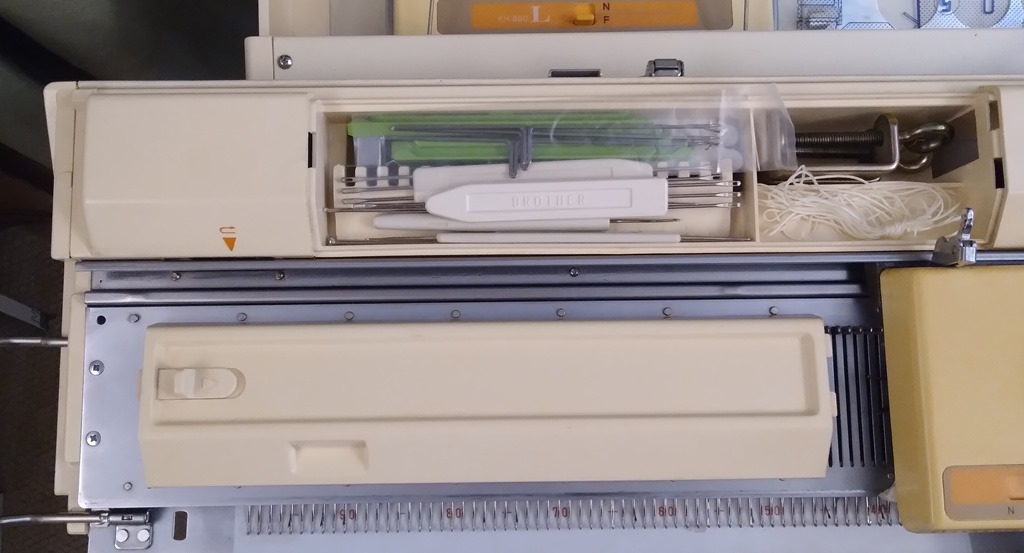

The minor assesories are stored inside a built-in storage box also with a lid.

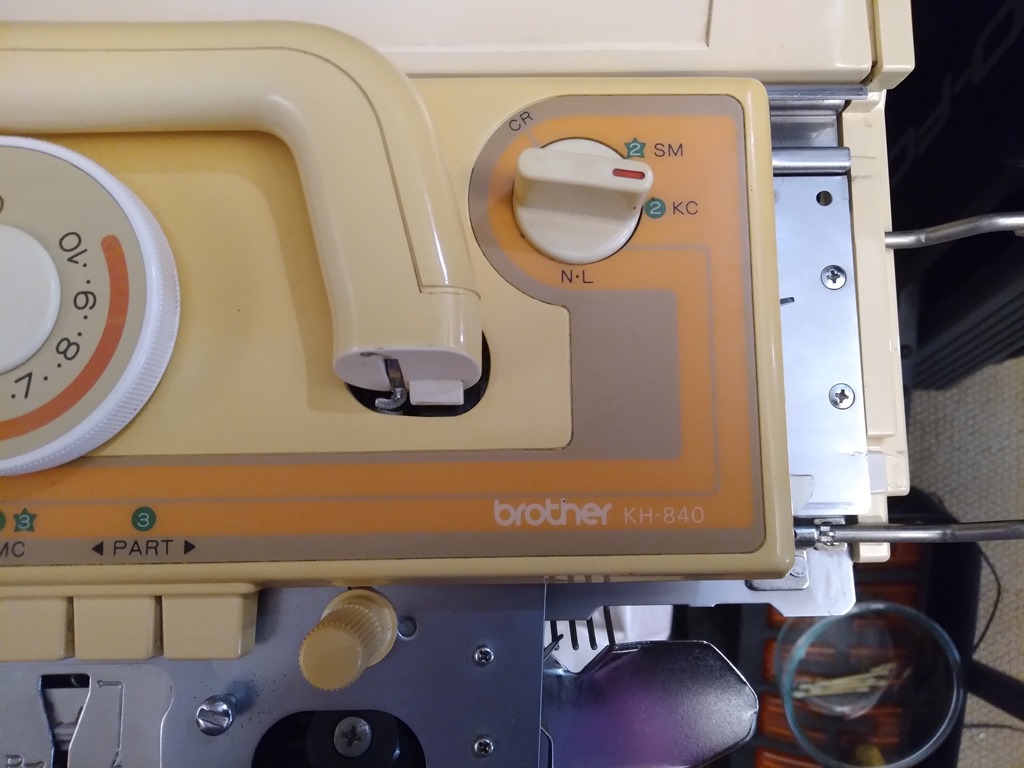

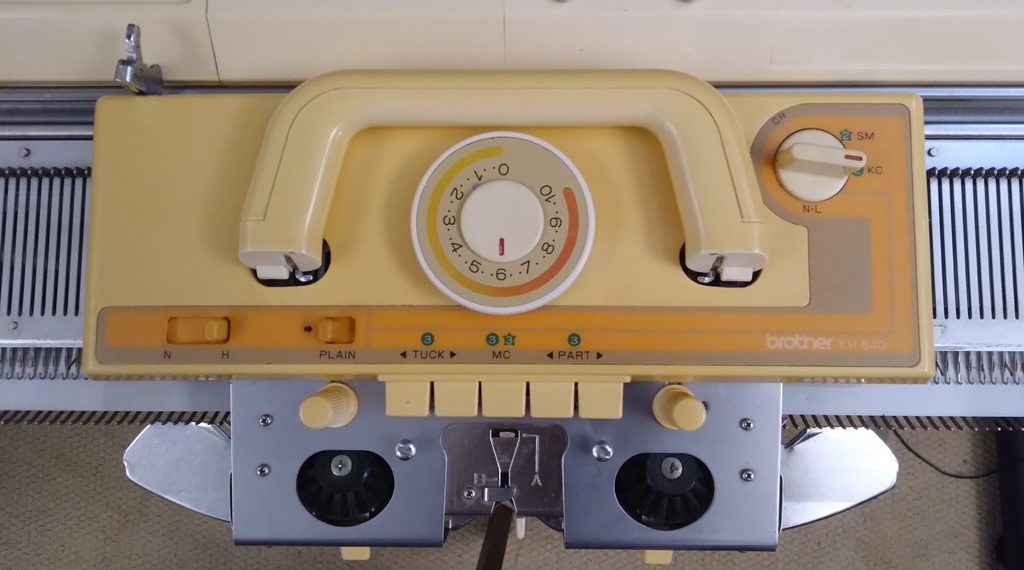

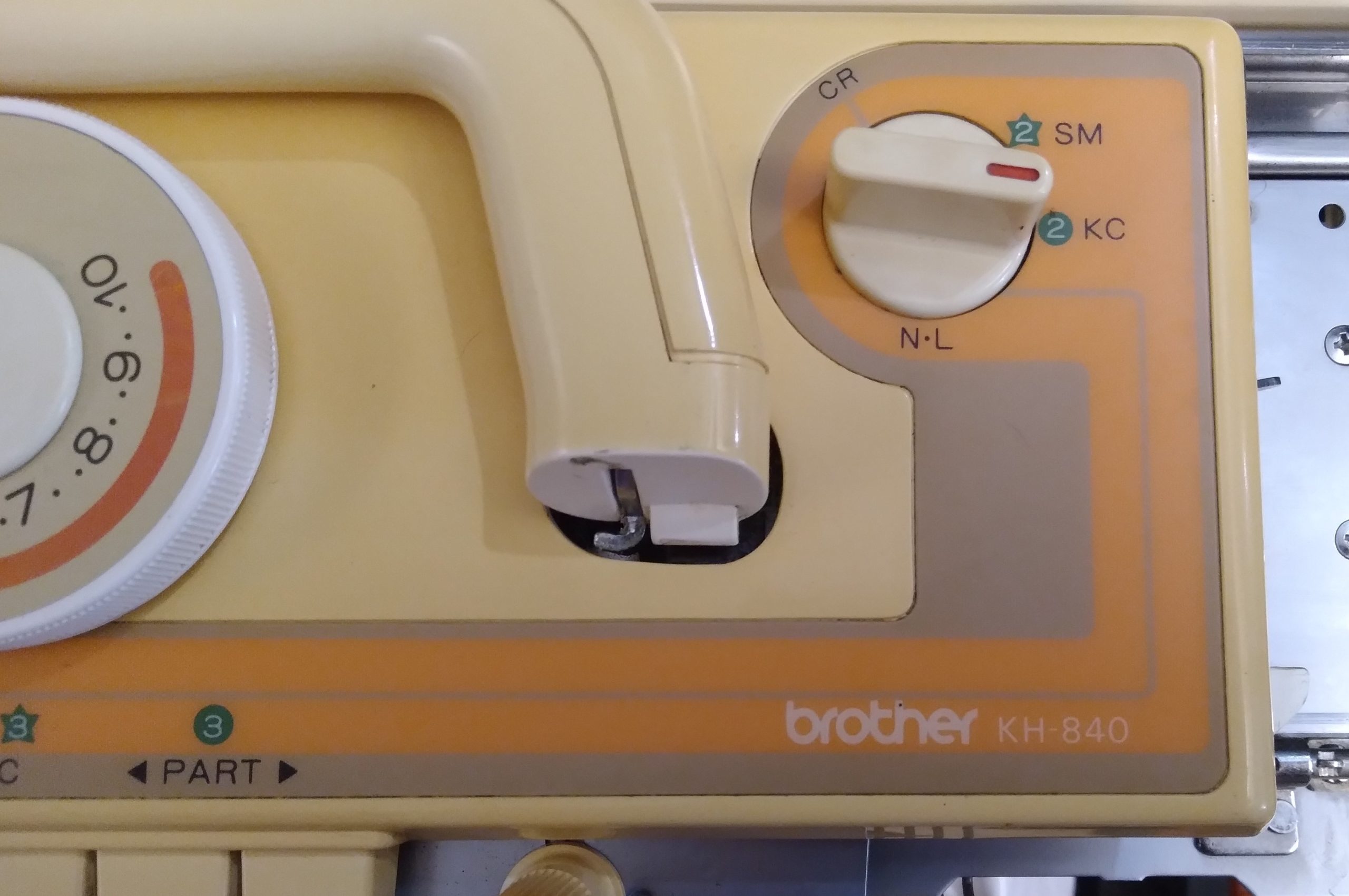

The carriage has tuck, fair-isle (middle MC button), and part (for slip-stitch knitting) buttons as well as N/H and plain levers. Patterning is activated by attaching the carriage to the timing belt by turning the knob on the carriage to KC position. CR and NL positions of the knob on the top right-hand side of the carriage are for no patterning and carriage release functions. Unlike its earlier counterparts (like Brother KH830 and KH836), Brother KH840 has an additional setting on the change knob: SM, for single motif knitting. The manual explains how to knit single motifs using single motif assesories (long green bars), which are also included with the standard setup. Also, unlike its earlier counterpart, e.g. Brother KH830, the position of the CR setting is somewhat more intuitive: on KH840 (and later models of Brother punch card machines) it is the last setting while on KH830 it is the very first one.

20230904_210704 (2)

If the carriage does not seem to be working correctly, you can refer to this article on common problems with the Brother knitting machine carriages.

The retaining bar is metal but contains a sponge strip, which needs to be replaced every 6-12 months. The retaining bar with this sponge holds the needles in place. Without the retaining bar, the needles will be too wobbly and will lose stitches. The retaining bar is 0.5 inches wide and 41 inches long. Table clamps are more modern and are simple clamps without any bolt-like screws like more vintage models. Notice that this type of clamp for Brother machines somewhat differs from similar clamps for Singer/Studio/Silver Reed machines: there is no protruding top bracket in Brother knitting machines. Both the top and bottom panels are on the same level.


Unlike previous models, it comes with a plating yarn feeder. Single motif settings and assesories are also present in this model’s setup, unlike its earlier counterparts, which is not included in standard setups in earlier punchcard models, KH830 and KH836 models. I have not knitted a single motif on Brother KH840 yet and will update this post when I have an opinion.


The sinker plate has a two-thread yarn holder. A standard mast is also capable of handling two different yarns at the same time.

Like most Brother punch-card knitting machines, comes with a punch-card holder rod. However, I often forget to insert it and use the punch card reader without that rod and without any problems Smile

Brother KH840 is compatible with the following add-on assesories:

  • Ribbers: KR810, KR830, KR850, KR900
  • Color changers: KHC820A, KRC 830, KRC900, KRC 1000E, KRC-1100M
  • Knit leaders: KL113, KL116
  • Garter carriages: KG88, KH88II, KH88III but with some additions (of a special yarn tensioner and specks racks according to the manual).
  • Transfer carriage: KA8300
  • Intarsia carriage: KA8210

I had the pleasure of testing this machine in September 2023 and covered this experience in a video and blog entry. So, I, first-hand, had experience judging the pros and cons of Brother KH840 knitting machines.

Here they are:


(+) Solid machine with plenty of replacement parts on the used and new market.

(+) Plenty of resources online on how to use it.

(+) Automatic patterning with slip-, tuck- and fair isle stitches. Just insert the punch card and knit away. Can do weaving.

(+) Can handle two different yarns (of different colors, for example) at once without the need for a color changer.

(+) Compatible with a variety of add-on assesories like ribber, transfer carriage, garter carriage, knit leader, etc.

(+) A timing belt when using the machine in patterning mode makes the carriage slide a bit easier.

(+) The punchcard reading mechanism has an option to expand the pattern two times.

(+) Very well written manual

(+) The handle on the carriage folds nicely (on some older models it screws on) for storage. Almost zero chance for the handle to be misplaced or lost.

(+) Comes with the plating feeder, which is not included in standard setups in earlier punchcard models, KH830 and KH836.

(+) Comes with single motif settings and assesories, which were not included in standard setups in earlier punchcard models, KH830 and KH836.

(+) Built-in accessory storage box

(+) Additional settings on the carriage (SM setting on the change knob on the carriage), not previously available on earlier punch-card knitting machines, like KH830 and KH836.


(-) The repeat pattern is limited to 24 stitches. If you want more flexibility, electronic patterning (KH9XX series) machines is the way to go.

(-) The sponge bar needs to be replaced regularly.

(-) If not stored/taken care of properly, it will rust.

(-) Buttons on the carriage are often stuck if the machine is not in use for prolonged periods of time.

(-) The standard set of punch cards is somewhat limited. Knitters who want other designs will need to punch their own (a quite tedious process if done by hand and a step-learning way if done by Cricut or similar automatic cutters).

(-) Again, only if not used for prolonged times, the patterning mechanism might start misbehaving… The reasons might be: gunk/dirt, stuck pieces of yarn, incorrect engagement with the timing belt, incorrectly (too thick) selected yarn/tension, faulty needles, etc.

(-) Plastic components of the machine, including plastic parts on the carriage, end caps, and others are prone to discoloration due to exposure to sunlight even through the window. Thus, please cover your machine with a thick curtain or a towel to prevent further sun damage.

(-) Not capable of knitting thread lace.

Almost all the cons refer to when the machine is not stored properly and are mostly related to machine maintenance.

Other standard Brother knitting machines with 24-hole punch-card capabilities are KH800, KH810, KH820, KH830, KH836, KH838, KH860, KH864, KH868, KH871, KH880, KH881, KH890, KH891, KH892 and KH894. Models ending with “1” typically have a built-in knit leader.

Studio/Singer/Silver Reed also produced standard-gauge knitting machines with 24-hole punch-card possibilities. Their patterning mechanism is somewhat different (they use patterning drums). The models are 210, 260K, 3XX series (e.g., 321, 326, 327, 328, 360K), and 700 mod, to name a few. A full list of all knitting machines with punch-card capabilities can be found in here.
