I am a proud owner of Brother KG95, so come back often as I am discovering new features and kinks. Also, check out my post about garter carriages in general: it has a lot of useful advises including on troubleshooting.

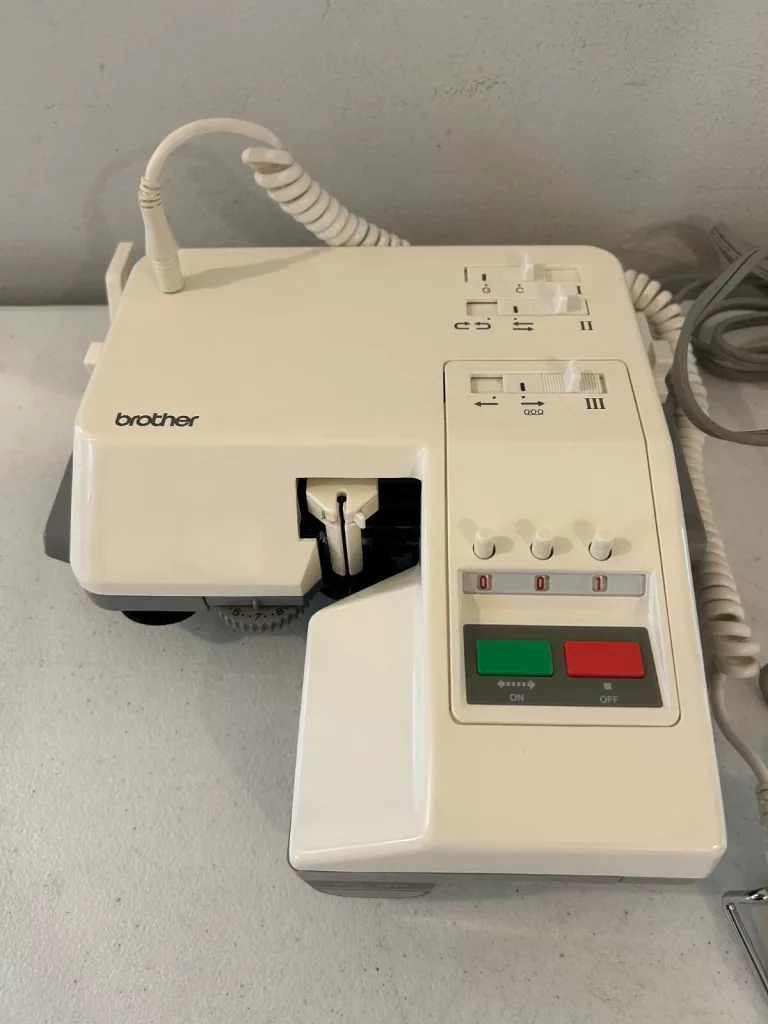

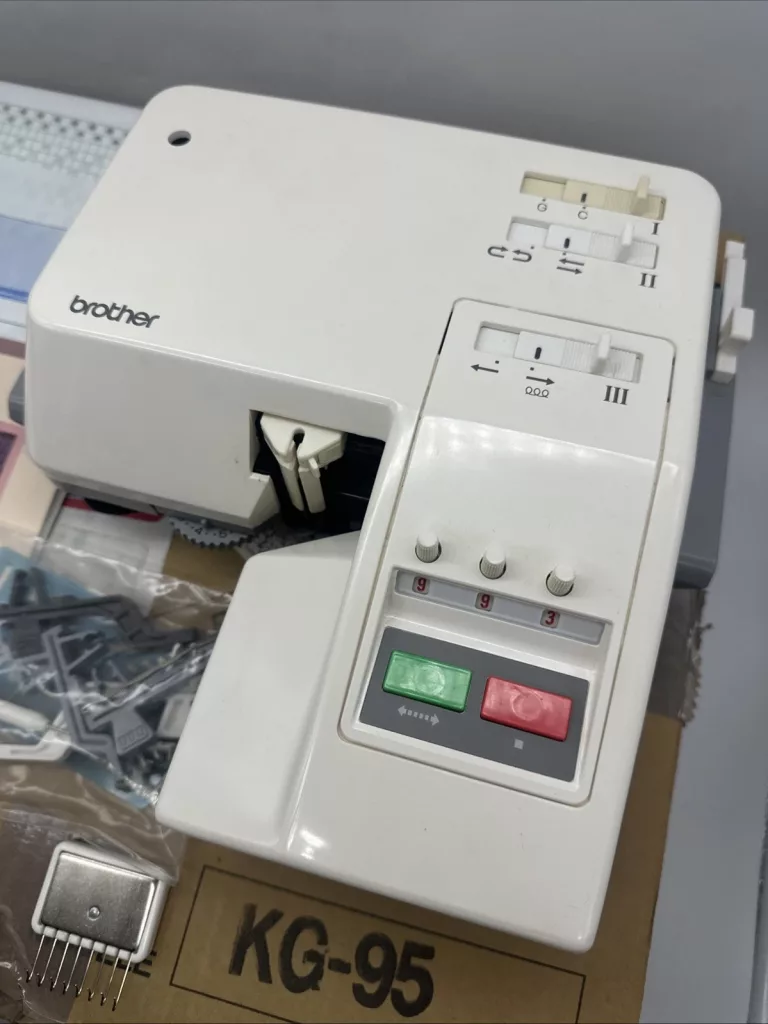

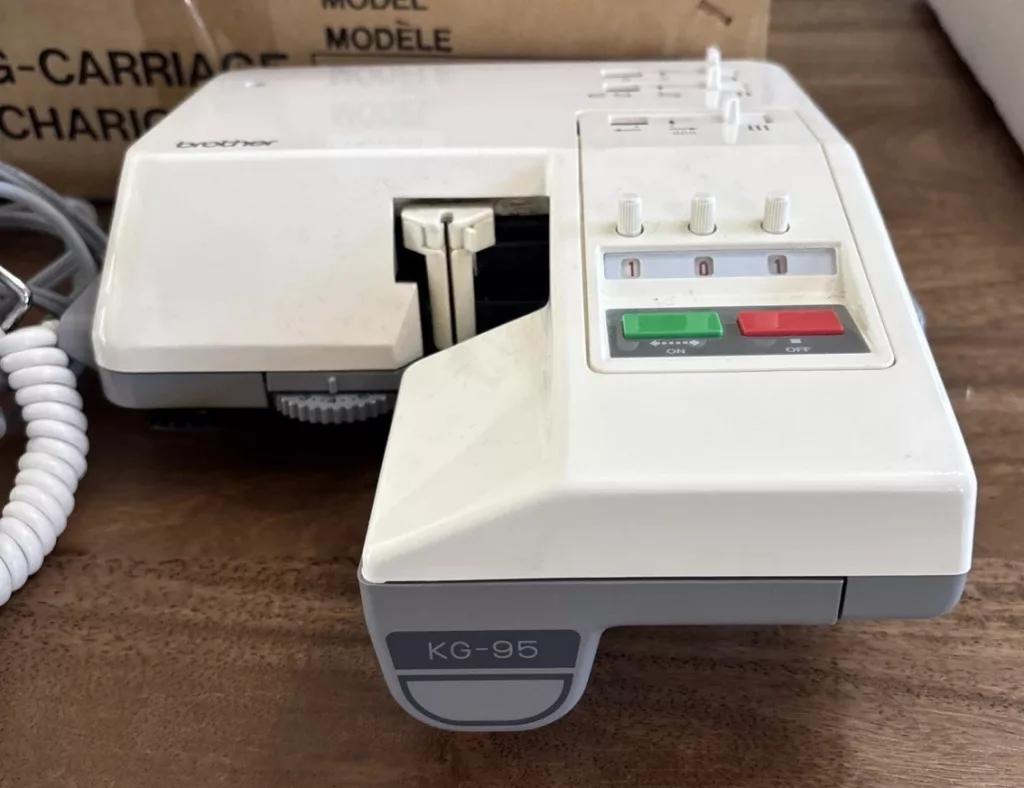

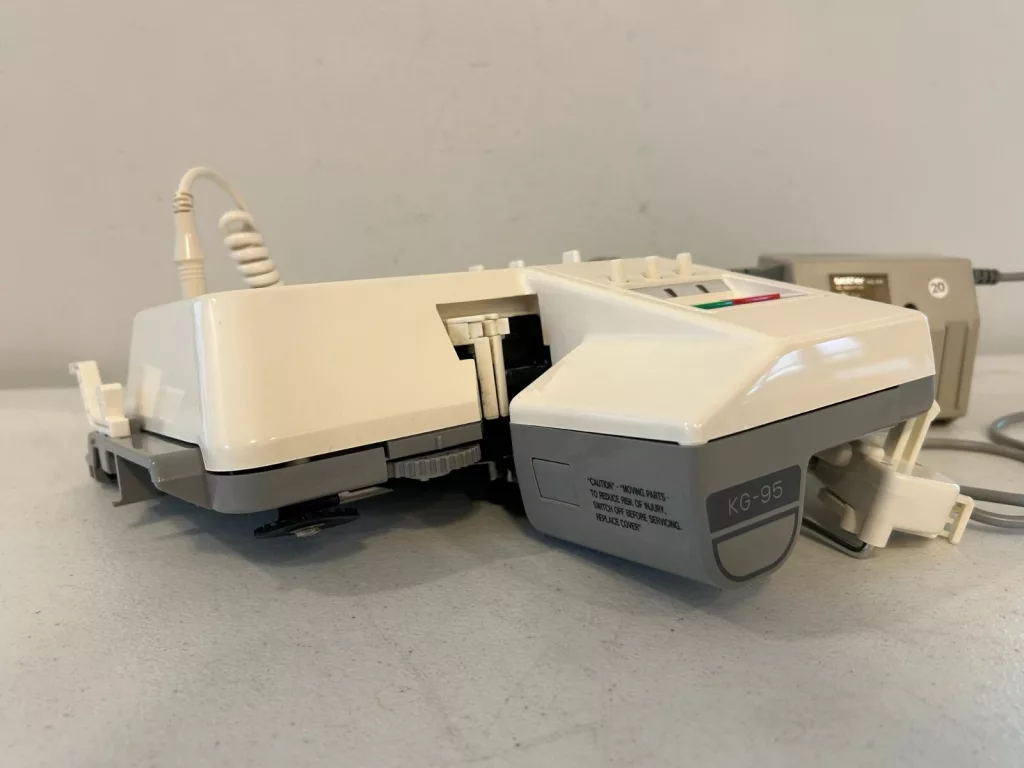

Brother Garter Carriage, G-Carriage, Omni Carriage or Chariot-G with the model KG-95 is the latest Garter carriage model released by Brother to support almost all (with the exception of Brother KH910) electronic Brother and Knitking knitting machines and some punchcard machines as well.

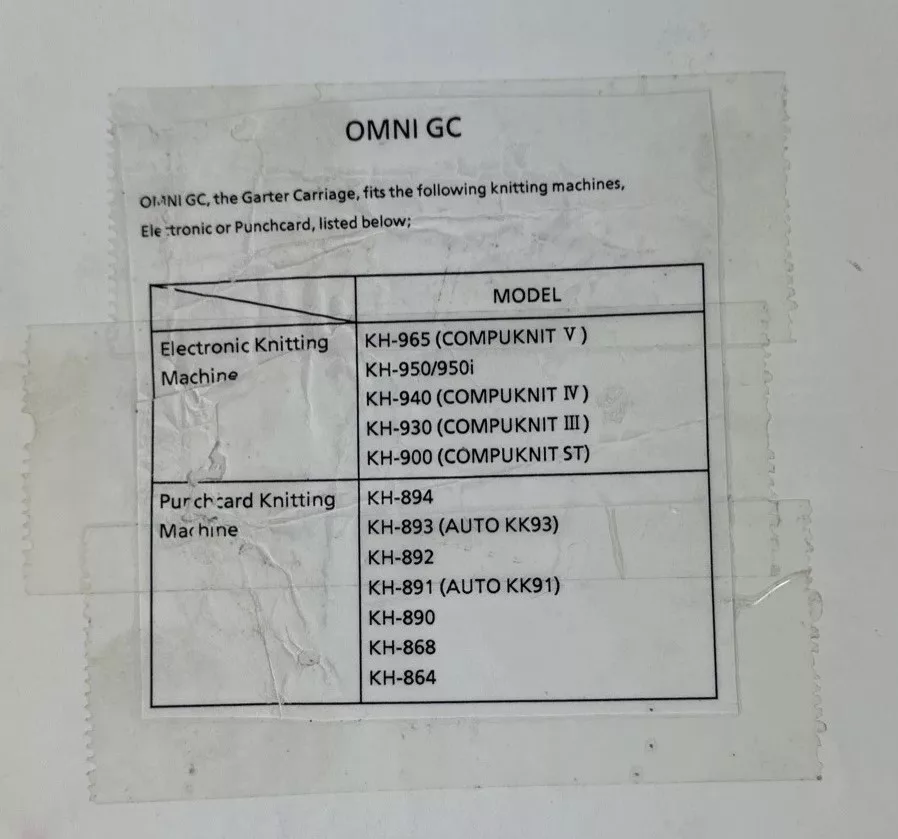

If your machine has built-in garter carriage rails, it is very likely that this garter carriage will work on it. Not all of those machines are shown below: For example, I’ve seen KH860 with built-in garter rails, even though it is not an automatic option for that mode.

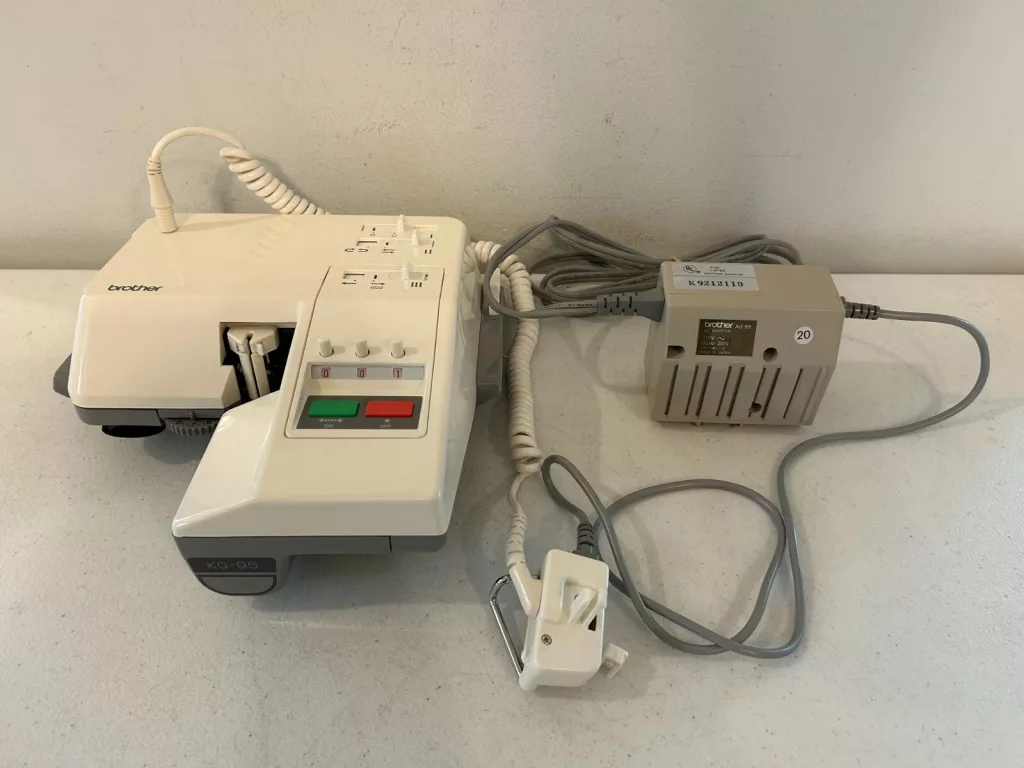

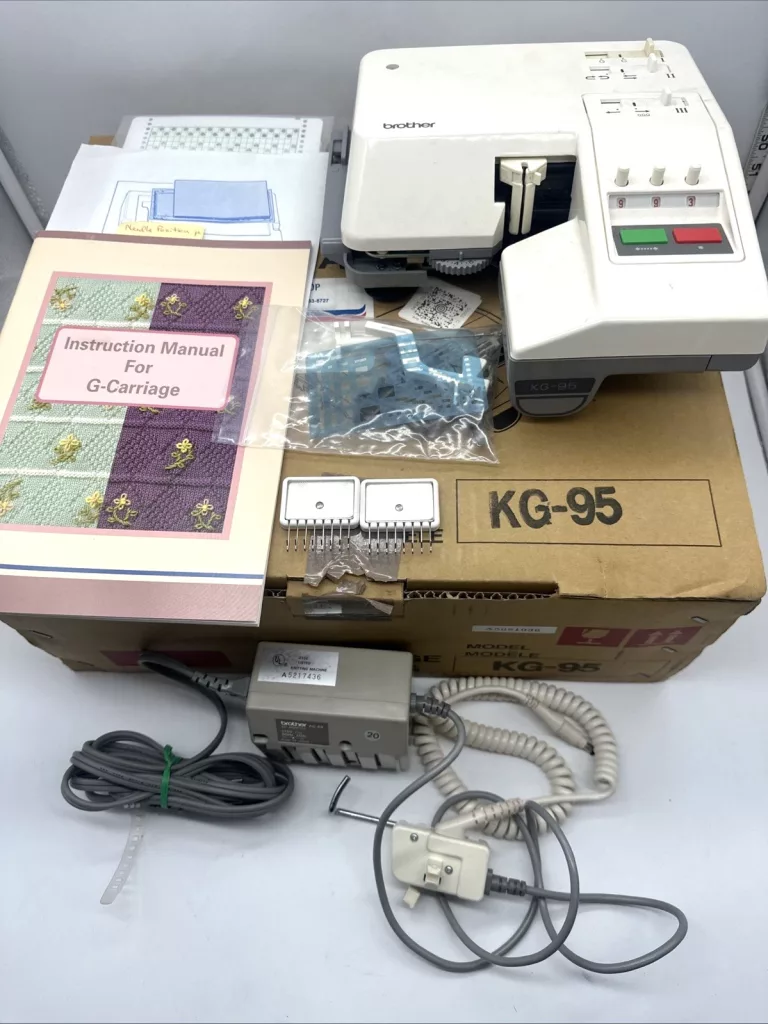

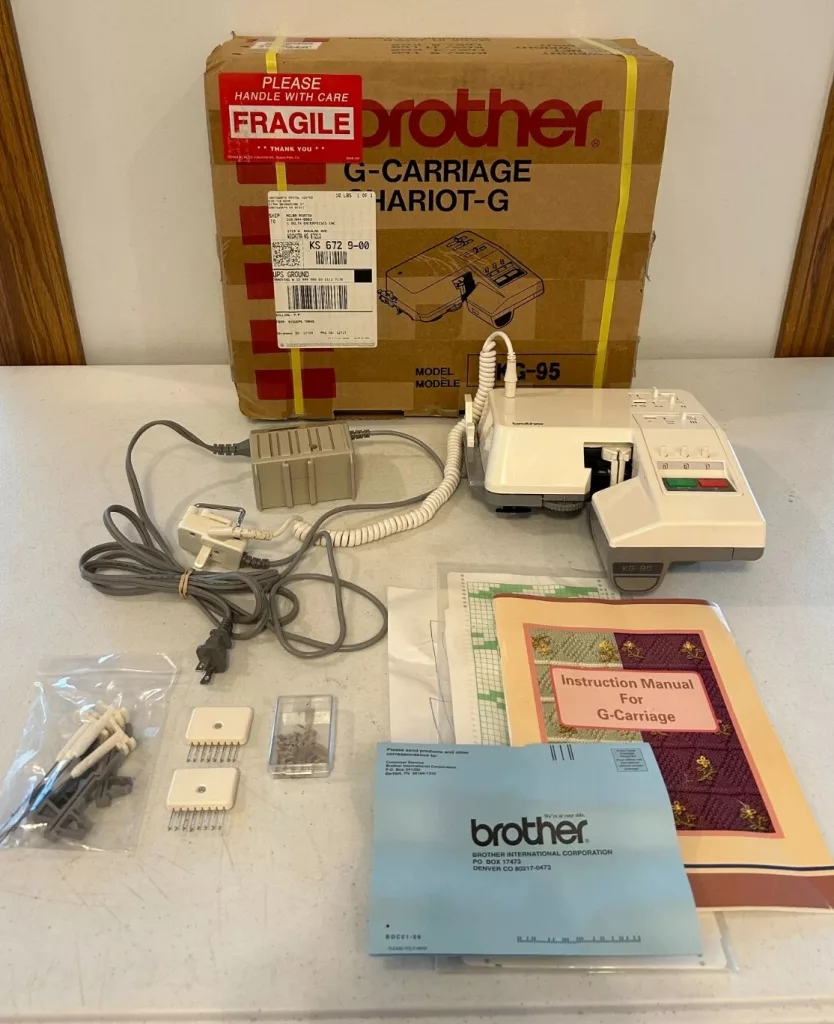

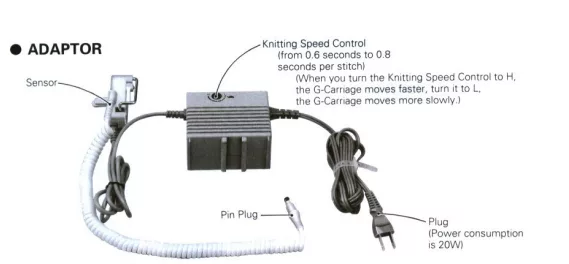

Notice that the manual shows a power supply without a cord branching to a machine (like the power supply for the Brother KG93), similarly to the power supply for the Brother KG88, KG89 and Brother KG88II, KG89II carriages).

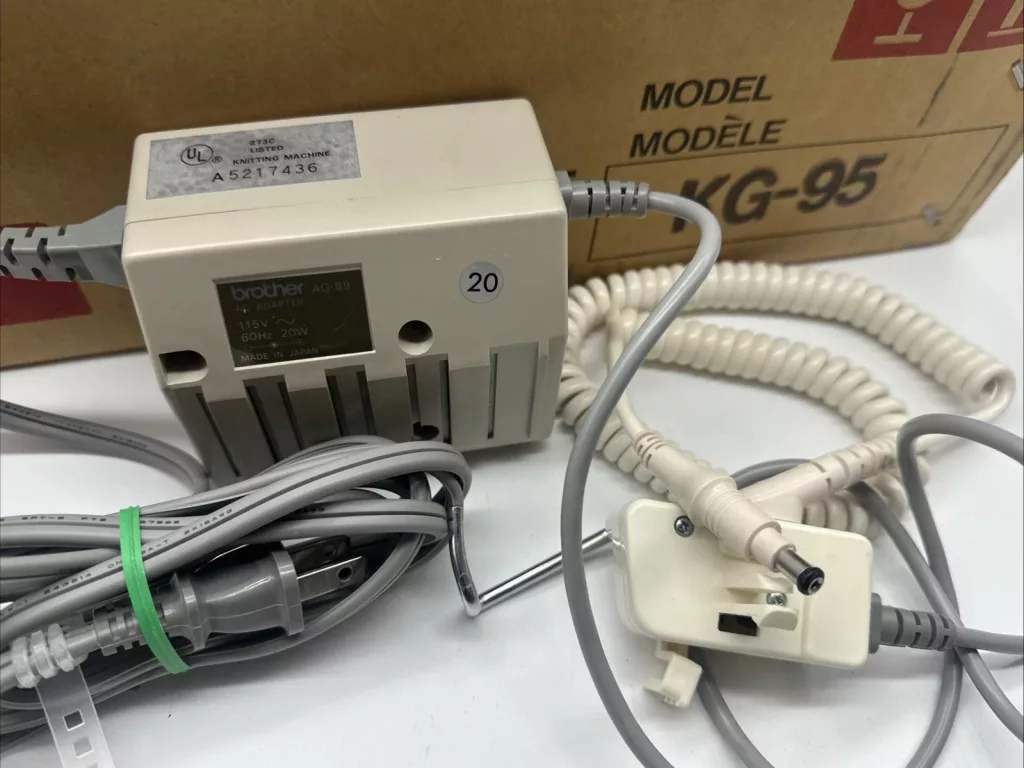

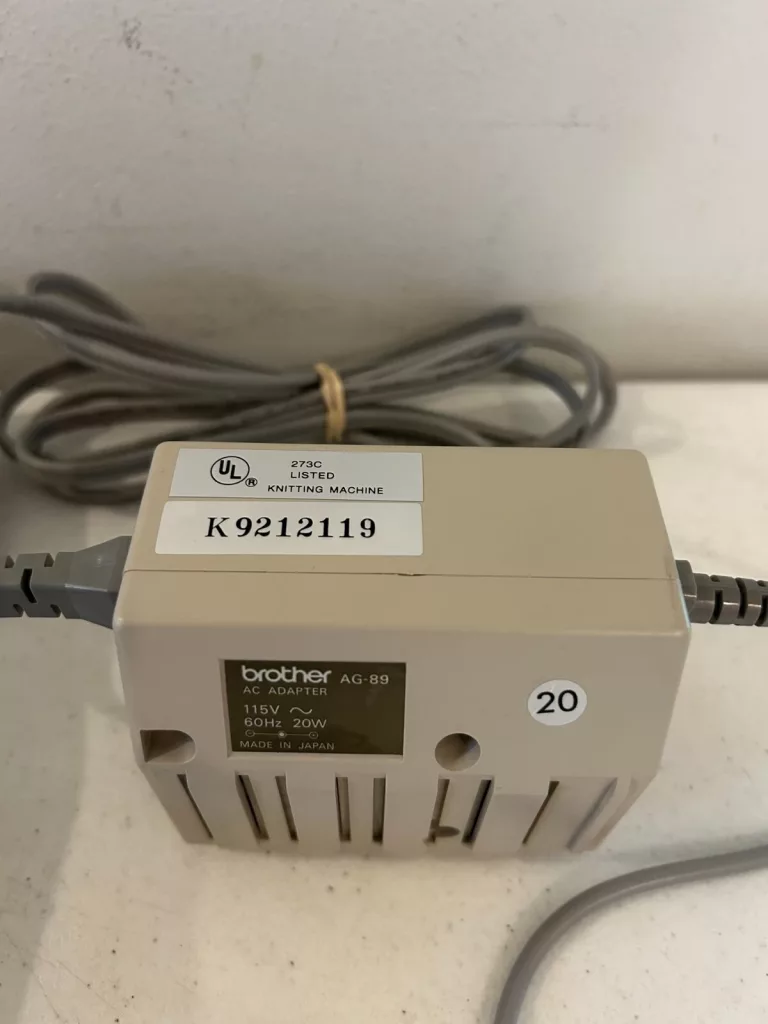

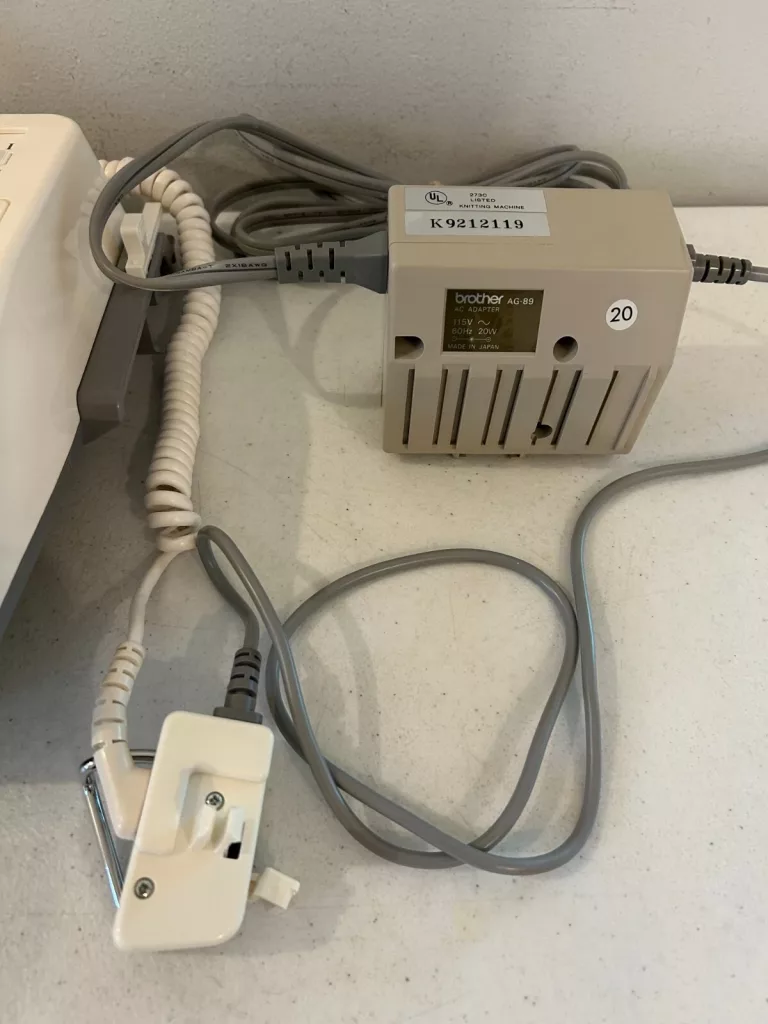

Keep in mind that even for the Brother KG95 garter carriage, the power supply says AG-89. There are also power supplies (for example if you buy your garter carriage without it and then purchase the power supply separately) specific for Brother KH930/930e machines, which also can be used with Brother KG95 carriages.

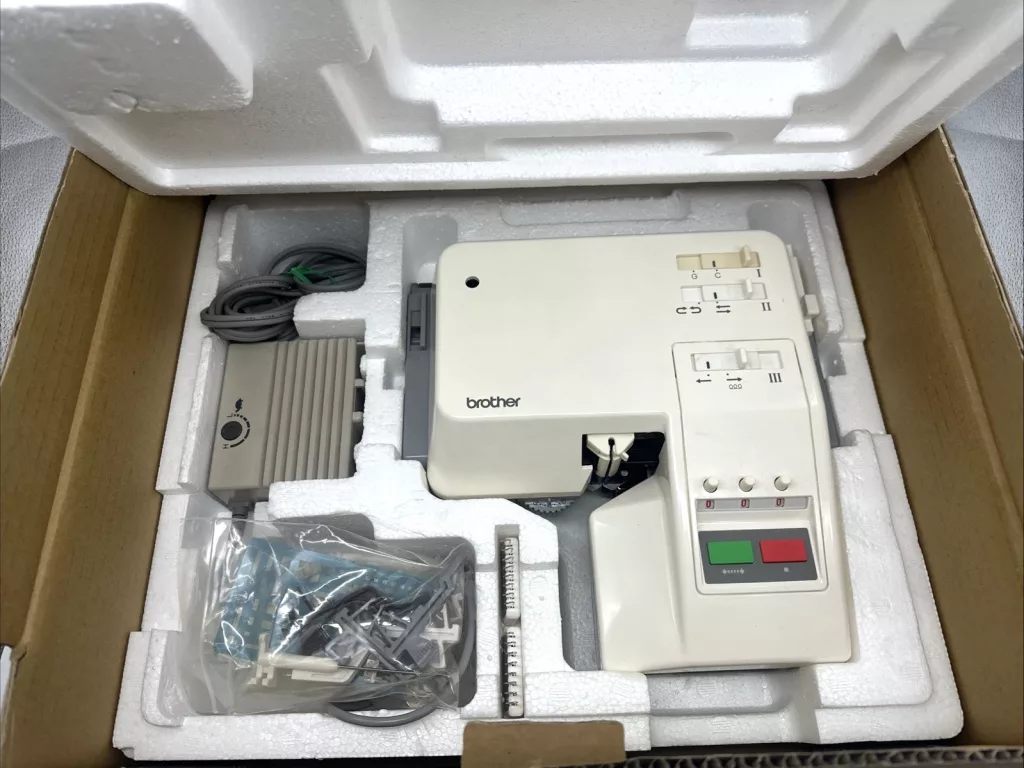

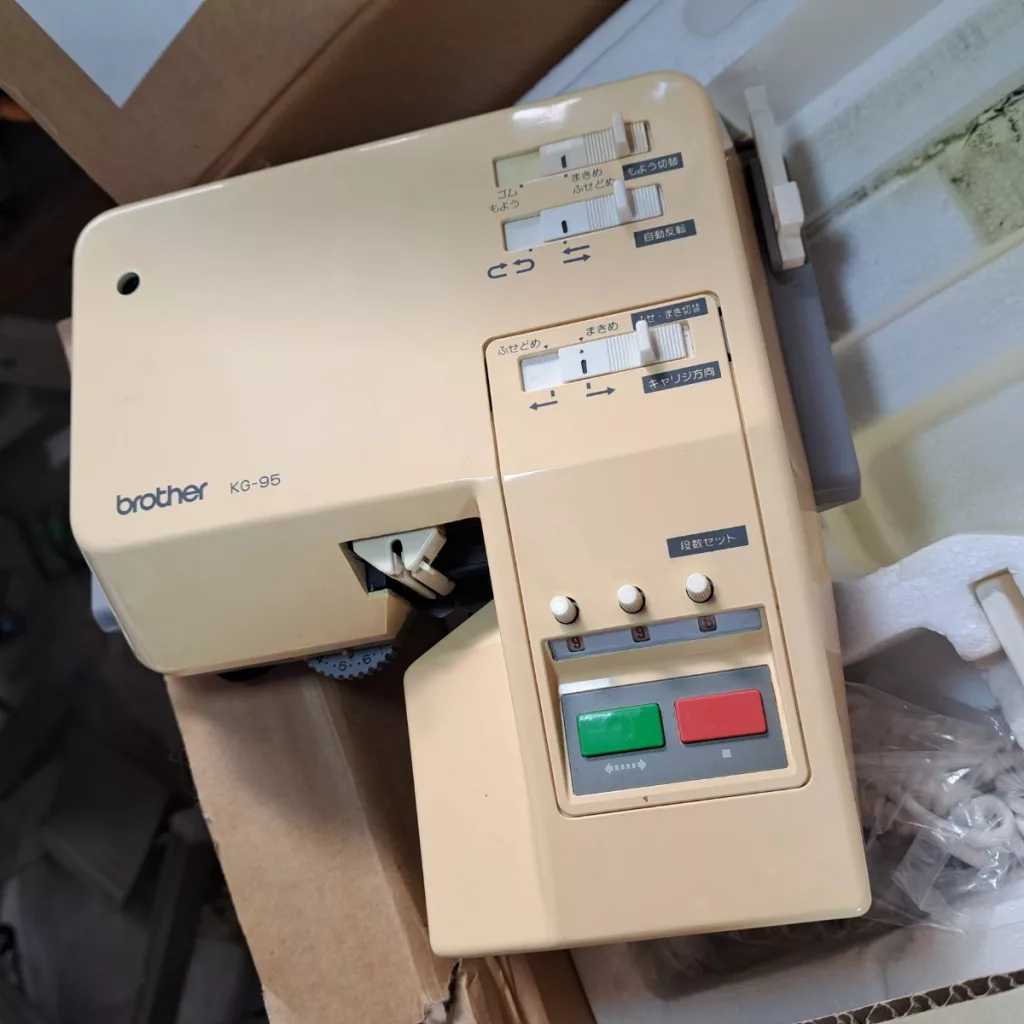

Brother KG95 garter carriages were released for Western and just Japanese markets. Thus, some carriages have only Japanese writing.
